250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable

Applications

These cables are designed for installed down well in the oil industry.

Standards

IEEE Std. 1018

API RP 11S5

API RP 11S6

Construction

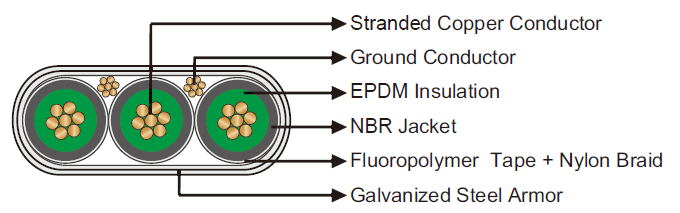

Submersible Pump Cables Flat Cables

Conductor: Stranded bare copper (7/3.503) with water & gas blocking compound adhesive in the outer layer.

Insulation: EPDM insulation.

Jacket: NBR jacket.

Tape: Fluoropolymer tape.

Braid: Nylon braid.

Ground Conductor: Stranded bare copper (7/1.4mm), 2x7AWG (4AWG).

Armor: Interlocked galvanized steel.

Dimensions and Weight:

5KV

Cable Type Conductor
Size
Conductor
O.D.
Insulation
Thickness
Overall O.D. Weight
AWG mm² inches mm Inches mm Inches mm lbs/
kft
kg/
km
QYEN-121-5kV-3G2/0 2/0 67.4 0.41 10.47 0.09 2.3 2.40x0.85 61.0 x 21.7 2734 4070

Other conductor size can be offered upon request.
